Product Description

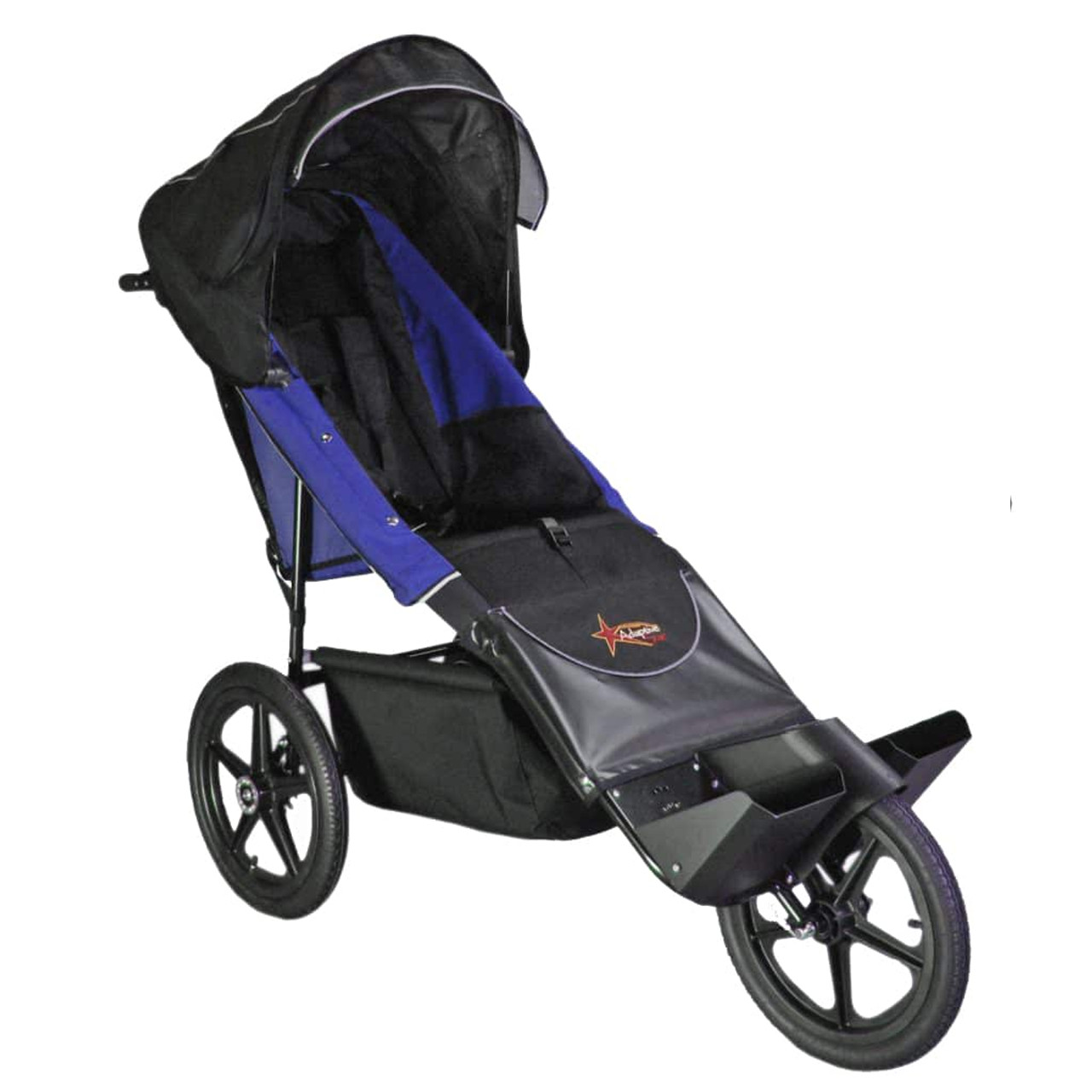

The Adaptive Star ENDEAVOUR provides families and caregivers the opportunity to enjoy life with a new perspective of adventure. The Axiom ENDEAVOUR is perfect for neighborhood walks, 5 mile runs, mountain trails, beaches, family barbecues or theme parks.
The Axiom ENDEAVOUR does it all while providing positioning and comfort for the passenger and has 2 individual adjustable footwells for passenger growth.
This chair has a fixed front wheel to allow it to be used on all types of terrain. If you would like a swiveling front wheel option with your chair you can order the swivel wheel axis kit to change the fixed front wheel out with the dual front wheel axis kit to be used for walks on paved surfaces or indoors.
At Adaptive Star we don’t believe in limits, don’t let your equipment keep you from your adventures and time together.
The Axiom ENDEAVOUR is available in 3 sizes, 2 colors, has a weight capacity up to 250 pounds.
At Adaptive Star we believe in Going Out & Making A Difference we hope you will join us on our journey.
Product Features/Specifications
- Light weight frame
- 16” quick release rear wheels (3) 1-front/2-rear Handbrake
- Rear foot brake brake
- Safety wrist strap
- Height adjustable handle
- Individual Adjustable Footwell system with feet straps
- Compact Single Action fold
- 1000 Denier Phthalate free Polyester Fabric with reflective trim
- Inside the seat pockets
- Seating area is lined with breathable wicking fabric
- Adjustable 5-point harness
- Reclining seat adjustable to a 30 degree recline
- Behind the seat storage pocket and Water Bottle holders (2)
- Firmness support in seat back and bottom both removable
- Seat is removable and machine washable
- Under the seat basket removable and machine washable
- Sun Canopy with view port window
- Weight capacity of 250 pounds for size 4
- Cargo capacity of 5 pounds
- 5 year frame warranty
- 1 year soft goods warranty

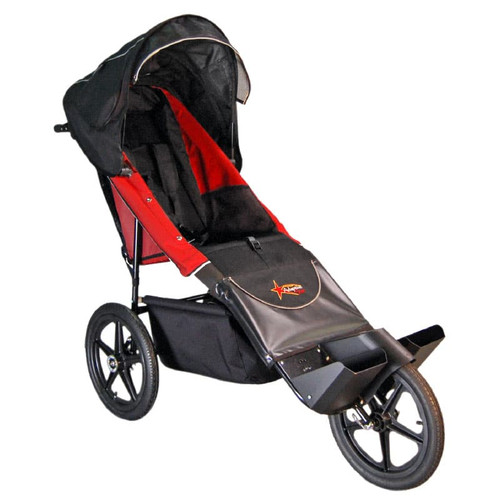

- Available in two colors (Red or Navy)
- Seating: Seat width - ”, Seat depth 15”, Seat Back height - ”, Lower leg 17” to 24”
- Assembled Weight 30 lbs
- Assembled size: L 69” X W 29 1/4 ” H 53”
- Folded with wheels: L 57” X W 29 1/4 ” X H 20”
- Folded without wheels: L 51” X W 24” X H 19”
- Axiom Endeavour 4 – Navy – Model – Aed1.5N – UPC – 631418019119
- Axiom Endeavour 4 – Red – Model – Aed1.5R – UPC – 631418019126
| Overall Length: | 69" |
| Overall Width: | 29.25" |
| Overall Height: | 53" |
| Folded Dimensions (w/ Wheels): | 57"L x 29.25"W x 20"H |
| Folded Dimensions (w/o Wheels): | 51"L x 24"W x 19"H |
| Back Height: | 31" |
| Seat Width: | 20" |
| Seat Depth: | 15" |
| Lower Leg Length: | 17" - 24" |
| Warranty: | 5 Year Frame; 1 Year Fabric |
| Weight Capacity: | 250lbs. |
| Cargo Weight Capacity: | 5lbs. |
| Weight: | 30lbs. |
PLEASE NOTE: For the benefit of the Assisted Athlete, it is always best to have the correct measurements to ensure the comfort and safety while in their push chair or Racer. Please follow these simple instructions on how to measure your passenger. Please call us immediately if you have any questions.
 For the best results, have the Assisted Athlete sit in a hard open back chair Preferably a kitchen chair or their Wheelchair. IMPORTANT!! Do not take measurements while Assisted Athlete is laying down.
 Allow them to sit in a relaxed position as that is how they will sit in the chair.
 Keep the measuring tape straight at all times. Do not contour the measuring tape to their body.
 While measuring from the tailbone to top of head, it is a good idea to have a ruler handy. Holding the ruler on top of the head partially sticking straight out, use the measuring tape from the tailbone to the underside of the ruler. You can use this same technique with the seat depth measurement as well, putting the ruler under the back of the knee.
 HELPFUL HINTS:
 Lower leg length, seat depth and seated height when added together should equal or be very close to their actual total height in inches.
 Seat depth and lower leg length should both be very close to the same
measurement.
