Product Description

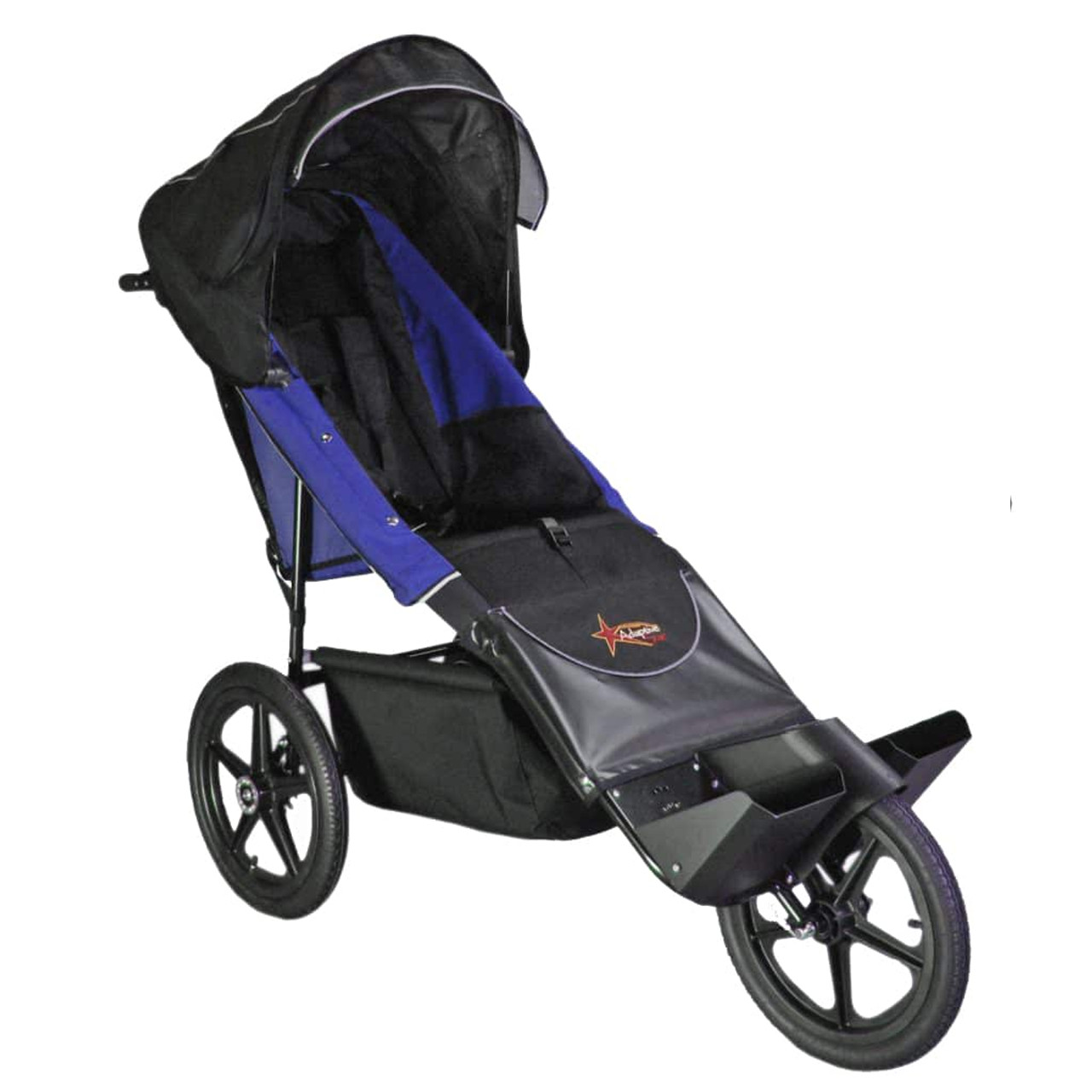

The Adaptive Star ENDEAVOUR provides families and caregivers the opportunity to enjoy life with a new perspective of adventure. The Axiom ENDEAVOUR is perfect for neighborhood walks, 5 mile runs, mountain trails, beaches, family barbeques or theme parks.
The Axiom ENDEAVOUR does it all while providing positioning and comfort for the passenger and has 2 individual adjustable footwells for passenger growth.
At Adaptive Star we don’t believe in limits, don’t let your equipment keep you from your adventures and time together. The Axiom ENDEAVOUR is available in 4 sizes, 2 colors, has a weight capacity up to 200 pounds.
At Adaptive Star we believe in Going Out & Making A Difference we hope you will join us on our journey.
Product Features/Specifications
Light weight frame
16” quick release rear wheels (3) 1-front/2-rear Handbrake
Rear foot brake brake
Safety wrist strap
Height adjustable handle
Individual Adjustable Footwell system with feet straps
Compact Single Action fold
1000 Denier Phthalate free Polyester Fabric with reflective trim
Inside the seat pockets
Seating area is lined with breathable wicking fabric
Adjustable 5-point harness
Reclining seat adjustable to a 30 degree recline
Behind the seat storage pocket and Water Bottle holders (2)
Firmness support in seat back and bottom both removable
Seat is removable and machine washable
Under the seat basket removable and machine washable
Sun Canopy with view port window
Weight capacity of 250 pounds for size 4
Cargo capacity of 5 pounds
5 year frame warranty
1 year soft goods warranty

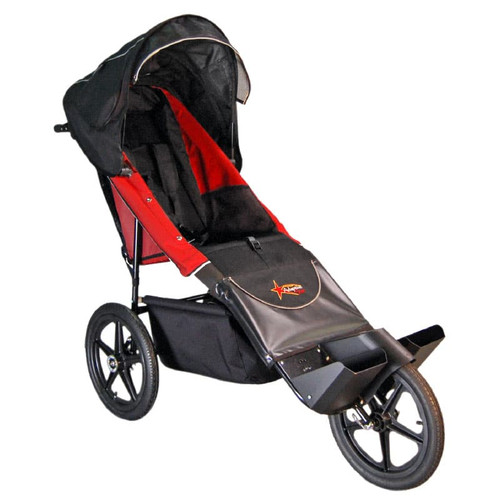

Available in two colors (Red or Navy)
Seating: Seat width - ”, Seat depth 15”, Seat Back height - ”, Lower leg 17” to 24”
Assembled Weight 30 lbs
Assembled size: L 69” X W 29 1/4 ” H 53”
Folded with wheels: L 57” X W 29 1/4 ” X H 20”
Folded without wheels: L 51” X W 24” X H 19”
Axiom Endeavour 4 – Navy – Model – Aed1.5N – UPC – 631418019119
Axiom Endeavour 4 – Red – Model – Aed1.5R – UPC – 631418019126
Overall Length: | 69" |
Overall Width: | 29.25" |
Overall Height: | 53" |
Folded Dimensions (w/ Wheels): | 57"L x 29.25"W x 20"H |
Folded Dimensions (w/o Wheels): | 51"L x 24"W x 19"H |
Back Height: | 31" |
Seat Width: | 20" |
Seat Depth: | 15" |
Lower Leg Length: | 17" - 24" |
Warranty: | 5 Year Frame; 1 Year Fabric |
Weight Capacity: | 250lbs. |
Cargo Weight Capacity: | 5lbs. |
Weight: | 30lbs. |
PLEASE NOTE: For the benefit of the Assisted Athlete, it is always best to have the correct measurements to ensure the comfort and safety while in their push chair or Racer. Please follow these simple instructions on how to measure your passenger. Please call us immediately if you have any questions.
 For the best results, have the Assisted Athlete sit in a hard open back chair Preferably a kitchen chair or their Wheelchair. IMPORTANT!! Do not take measurements while Assisted Athlete is laying down.
 Allow them to sit in a relaxed position as that is how they will sit in the chair.
 Keep the measuring tape straight at all times. Do not contour the measuring tape to their body.
 While measuring from the tailbone to top of head, it is a good idea to have a ruler handy. Holding the ruler on top of the head partially sticking straight out, use the measuring tape from the tailbone to the underside of the ruler. You can use this same technique with the seat depth measurement as well, putting the ruler under the back of the knee.
 HELPFUL HINTS:
 Lower leg length, seat depth and seated height when added together should equal or be very close to their actual total height in inches.
 Seat depth and lower leg length should both be very close to the same
measurement.
