Product Description
The ENVO ST offers the ultimate accessible mobility. Featuring a low-step design for easy mount and dismount, the ST offers a maximum of 500W of street-legal power and a range of up to 100 km.
ENVO ST electric bike offers the ultimate accessible mobility
Engineered to be a full-featured, no compromise bicycle first, with the added benefit of power assist when you need it. Switch the power off and experience the unparalleled ride quality of this hybrid bicycle.
- Perfect for commutes and pleasure ride mostly pave road
- Suitable for pople below 130kg weight, up to 190cm (6’4”ft) tall
- Light-weight frame to carry on boat, car, plane, transit, etc.
- Continuous up-hills with 10-15% road grade
FRAME
The ENVO ST is built with a solid, super lightweight, stylish and unisex hydro-formed aluminum alloy frame is a small and large frame size suitable for people from 5’ all the way to 6’6” rider. It is capable of a rider up to 300lbs and offering an ergonomic shape, which makes it easy for the rider to get on and off. The frame is specially designed to minimize all the vibrations and noise from the drive-system, the right wheelbase for a high speed and a pleasurable ride on both paved and unpaved roads.
BATTERY PACK
The ENVO Battery powering the ST is a lizard styled, super lightweight, down tube mounting Li-Ion pack in a stylish thin ABS case with an auto-connect socket, a charge indicator, security lock and accessories. The battery is removable and can reach a range of up to 100 km per charge on pedal assist level 1. The battery can be charged on or off the bike frame using the little portable CC-CV smart Li-Ion battery charger. The ENVO Battery is an A-grade branded Li-Ion battery, comprising of LG or Panasonic Li-Ion cells and a BMS that avoids battery from overcharging, overloading and other hazardous activities, thereby increasing both cyclic and calendar life of the battery. Battery cells have been selected for best operating in freezing temperatures.
E-ASSIST SYSTEM
The ST is equipped with an advanced pedal-assist sensor with an optimized torque emulation software. The advanced torque emulating Pedal Assist Sensor (PAS) signals the controller to run the motor between 5 levels of pedal assist, providing a boost to your pedalling depending on the level of assistance you select while riding. The ST is equipped with an on-demand thumb throttle that gives you an extra boost which activates the motor proportionally to the twist no matter you pedal or not to give you a fully electric ride in case you cannot pedal or need an instant acceleration or uphill push.
GEARED MOTOR HUB
ENVO ST is equipped with a sealed, powerful, upkeep free, geared hub motor that offers 500W power and 60Nm torque. The bike is a street-legal bike with legalized speed, torque and power all over Canada and most parts of the US. Our motors are 50% lighter than all the rest powered geared hub motors in Canada, yet they deliver 50% more torque and 25% more battery efficiency. These ENVO motors are developed for over 20,00Km maintenance-free ride.
TIRES
27.5″x1.95 tires, the best proven outer diameter for a commuter bike (i.e. 700C) but more cushiony which improves ride comfort, dynamic manoeuvrability, and handling in different terrains. Tires are fat and knobby enough for the best grip on wet cement, asphalt paved, dirt or gravel trails which creates minimum noise and drag for normal urban paved rides.
FORK
Adjustable, lockable fork with solid 30mm fork legs adds to high-speed stability and handling on trails and asphalt. It reduces the shocks to the frame and battery system and provides ultimate comfort.

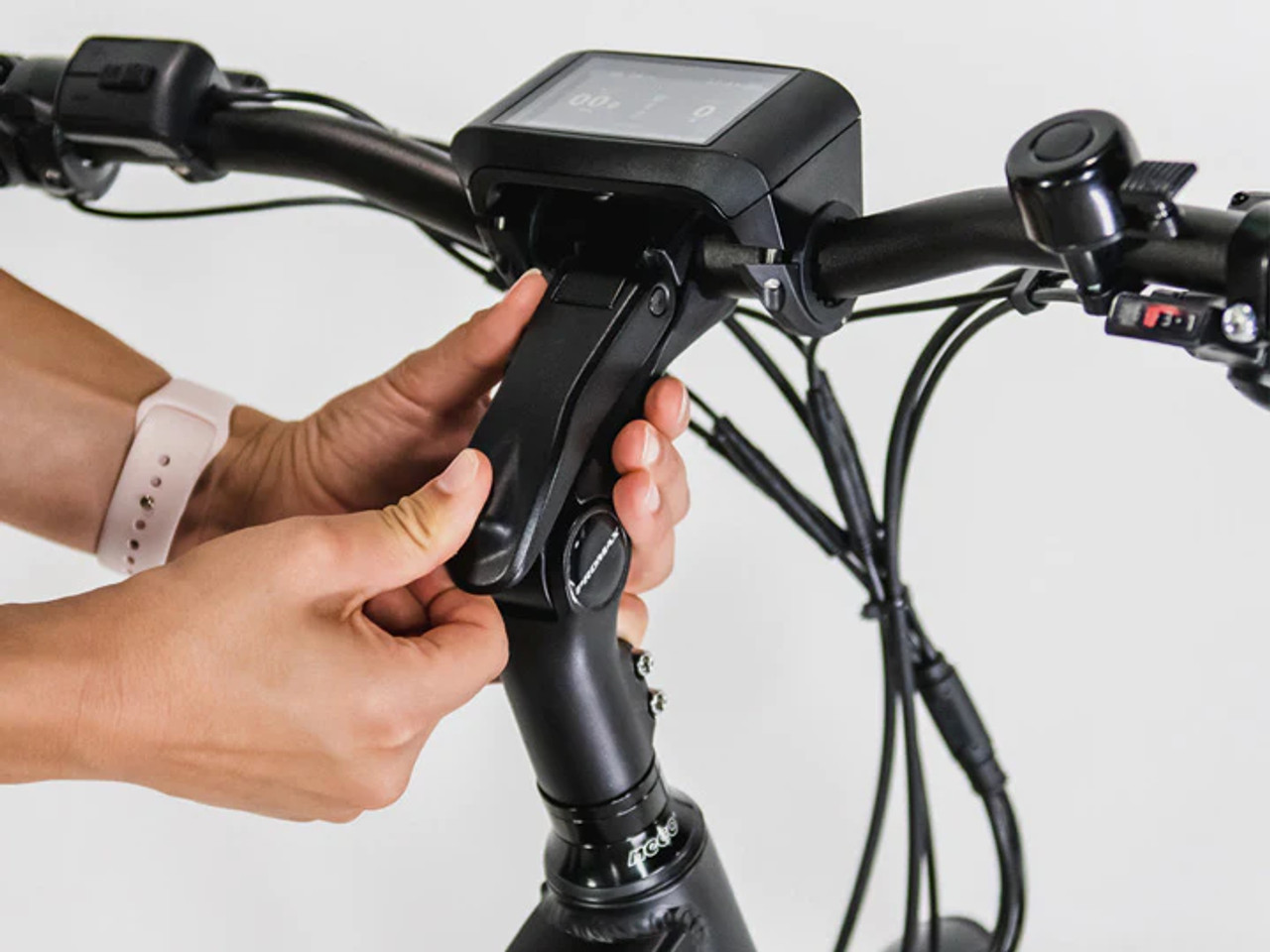

AJUSTABLE STEM
The adjustable handlebar stem on the ST, lets the rider do the ergonomic fine-tuning whether you like an absolute upright or performance pedalling position.
TRANSMISSION SYSTEM
Well-engineered 8 speed 48T chainring and 11-32 cassette Shimano Altus transmission help you overcome up to 25% grade when climbing a hill on gear 1 or 40km/h speed on gear 8 with gentle peddling.
HYDRAULIC DISK BRAKE​
Top of the line hydraulic disk brakes equipped with electric cut-off sensors provide more safety to the bike as well as the rider.
SADDLE
The unisex saddles, professionally designed with cuts and curves for high performance pedalling, and wide enough for long upright cruises, are the most relaxing, cushion saddles with ultimate comfort and style for all riders.
HEADLIGHT
The ST is fitted with high efficiency and bright LED 40 LUX headlight powered by the main battery and controlled by a keypad on the handlebar.
TAILLIGHT
Taillight and reflector provide more safety riding in the dark. It powers up once the headlight is switched on.
Frame
27.5 X1.95, Hydro-formed Alloy 6061 TIG welded
Fork
Zoom 595S AMS /SR Suntour, 27.5 X1.95 Suspension fork, with load adjustment and lock,Travel 80mm
Headsets
thread less headsets, φ25.4×44×30mm，22mm,NECO
Handlebar
alloy handlebar, 31.8mm TP22.2x680mm, 65mm,30 degree
Stem
alloy thread-less stem, φ25.4*E110mm,adustable, sand black, MA-579, PROMAX
Brake Set
F/R alloy hydraulic disc brakes, black ,with alloy electric brake lever , Rotor 180,Zoom HB 875-E/Tektro HD-E350
Grip
TPR Grip VELO
Crank Set
3/32″x48Tx170MMx9/16″, alloy crank with single chain ring cover, PROWHEEL PRO-748P
BB sets
sealed B.B sets, B908
Pedal
Alloy, 9/16″ WELLGO
Chain
TEC,C70
F/R Hub
Alloy hub with quick release, hub motor
Gear Set
SRAM X4/SHIMANO ALTUS 8 speeds
Chain
27.5″x13Gx36H,alloy double wall, blackSpokes Stainless steel black 13G spokes
Tire
27.5″x1.95, black, with AV butyle tube, CSR/CHAOYANG/KENDA
Saddle
vinyl top cover, padded with PU, with black ABS ,VELO
Seat Post
alloy suspension seat post
Kickstand
alloy, single rear kickstand
Front Light
battery light, AXENDO 60
Rear Light
Battery light RL13
Rear Carrier
Alloy carrier, black
Fender
PVC Plastic fender
Motor
Brushless 36V/500W max/ Geared rear motor
Battery
36V/12.8AH 3200 LG/Panasonic Lithium battery
Charger
42V 2A CC-CV 240/120V ULc
Controller
BLDC Sine-wave controller 17A waterproof connectors
Sensor
PAS/thumb throttle, speed sensor
Display
LCD panel, with 5 assistance levels, power display,750C
Packing
Assembled, Requires front wheel QR assembling, handle bar and final tunes.
Available Options
Small (16inch frame): Color Pearl/Black and Jungle/Black
Large (19inch frame): Color Jungle/Black
